PiezoSleep
Data Collection Software
Our PiezoSleep data collection software scores sleep and wake automatically while the system is running; processing real-time pressure signals from animals during sleep or waking activity. A highly sensitive, calibrated piezoelectric sensor (or new Adapt-A-Base sensor pad) is under the rodent cage. PiezoSleep collects the analog data, digitizes the data and roughly computes sleep and wake; viewable in real-time.
1
2
3
4
5
1

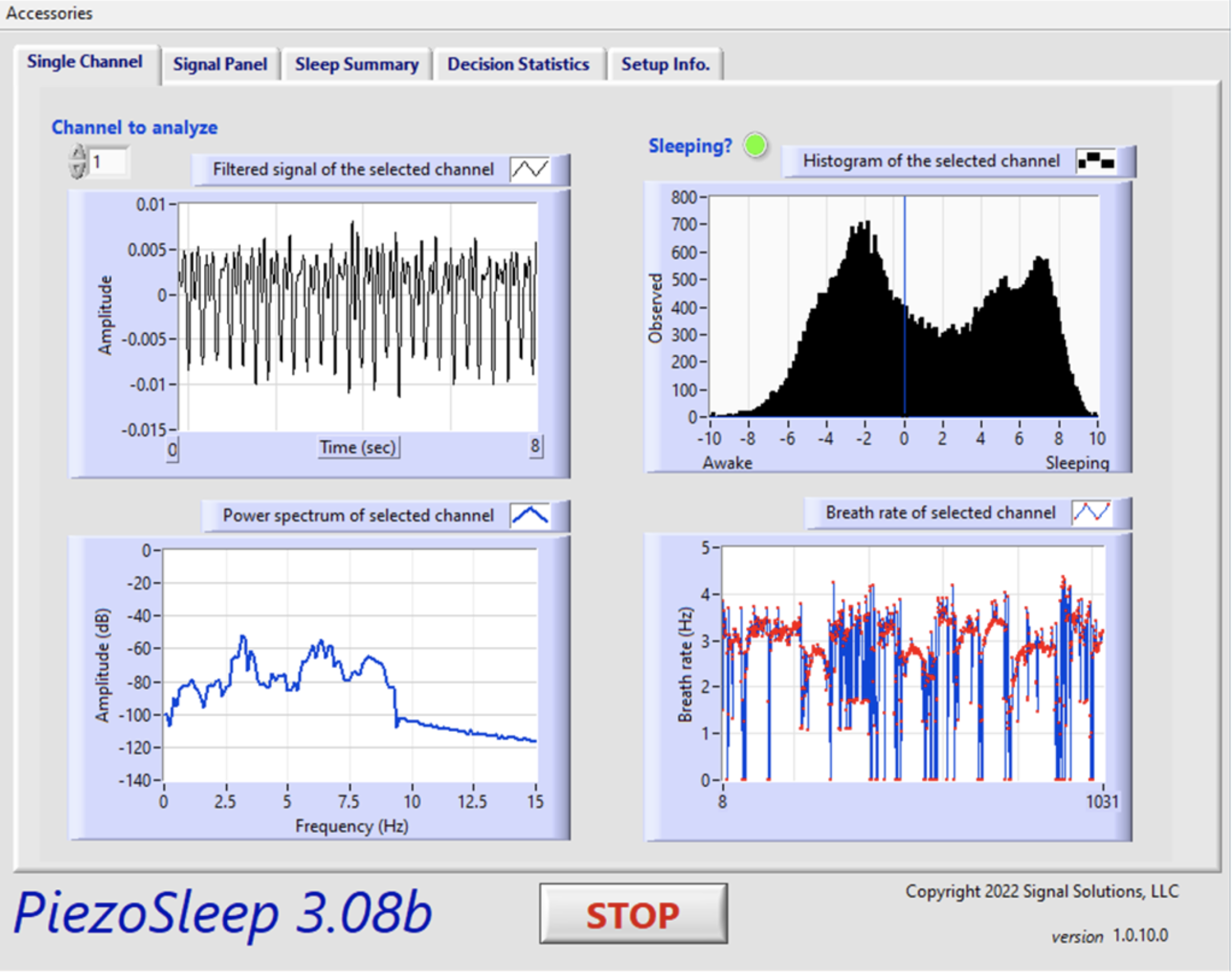

Single Channel (Active Mouse)
Piezo signal (top left), Sleep decision statistic (top right), Signal power spectrum (bottom left), Breath Rate frequency (bottom right)
2
Signal Panel
(4 active channels) Mice are active in channels 1 and 2 and asleep in channels 3 and 4.
3
Sleep Summary Tab
View the cumulative percent of sleep from the beginning of the recording.
4
Decision Statistics
Displays a histogram of cumulative sleep scores from the beginning of the recording. Below the 0 threshold indicates wake scores. Each is scored over a two-second interval.
5
Setup Information Panel
Single Channel view of sleeping mouse
- Piezo signal (top left)
- Sleep decision statistic (top right)
- Signal power spectrum; 2.5 Hz peak indicates breathing signal (bottom left)
- Breath Rate frequency (bottom right)
*Hover over the tabs in the image to see other views of the Running PiezoSleep program. The “Single Channel” tab will reveal an alternate main view.
